Lightweight Double Layer Plastic Pallet Box With Vacuum Forming For Logistics
Product Details:
| Place of Origin: | ANHUI,CHINA |
| Brand Name: | HUICHUANG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|
|
Detail Information |
|||
| Color: | Blue | Material Structure: | HDPE |
|---|---|---|---|
| Printing Handling: | Embossing, Glossy Lamination, UV Coating | Be Used For: | Foods,goods,liquid,etc |
| Design: | 4-way Access | Entry Type: | 4 Way |
| Internal Dimensions: | 1110*910*790mm | Size: | 1200*1000*810mm |
| Highlight: | Vacuum Forming Plastic Pallet Box,Double Layer Plastic Pallet Box,Logistics Plastic Pallet Box |
||
Product Description

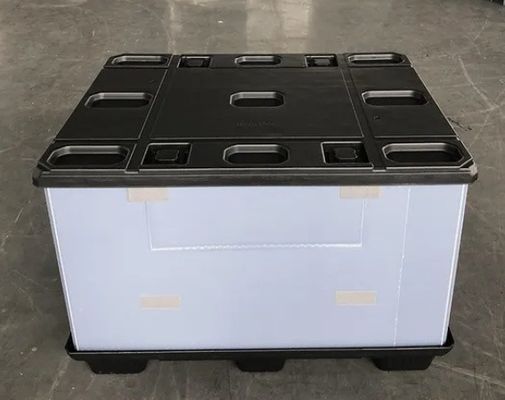

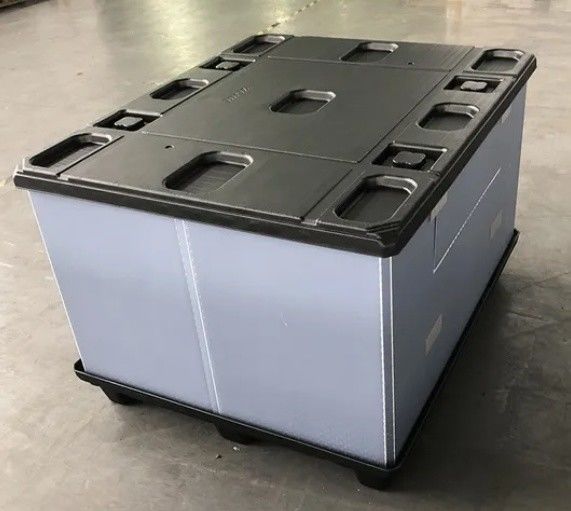

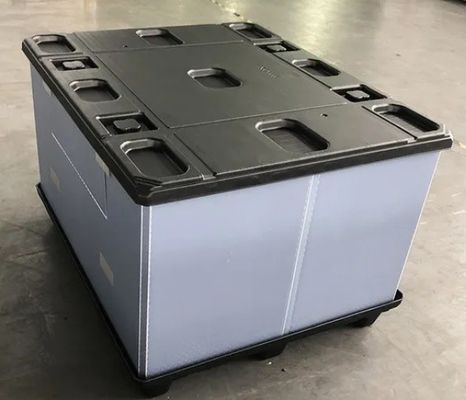

Lightweight Double-Layer Plastic Pallet Box with Vacuum Forming for Logistics
1. Customize the size of the enclosure box based on the size of the truck and container.
2. Design customized lining according to different product sizes, shapes, and weights.
3. Customize color and logo according to your needs, and provide packaging bag printing services for all products.
4. Different manufacturing processes, including casting
moulding, injection molding, twin sheet blow molding, twin blister, etc.
Product Size
| Name | Outer dimension(mm) | Inner dimension(mm) | Folding dimension(mm) |
Max loding (kg) |
Max Stacks(kg) | Tare(kg) | Entry type |
| Y1210 | 1200x1000x1000 | 1135x935x820 | 220 | 500 | 2000 | 32 | 9feet |
| Y1208 | 1200x800x745 | 1125x725x565 | 230 | 700 | 2000 | 27 | 9feet |
| Y1450 | 1455x1135x745 | 1375x1050x565 | 237 | 500 | 2000 | 38 | 9feet |
| Y1130 | 1135x730x745 | 1055×650×565 | 220 | 400 | 2000 | 20 | 9feet |
| Y980 | 1140x980x1000 | 1060x900x820 | 220 | 700 | 2000 | 31 | 9feet |
| Y11 | 1140x1140x1000 | 1062x1062x820 | 230 | 700 | 2000 | 33 | 9feet |
| Y600 | 1140x600x650 | 1065x520x470 | 220 | 400 | 2000 | 20 | 9feet |
| Y86 | 815x615x650 | 740x535×570 | 230 | 400 | 2000 | 16 | 6feet |
| Y1770 | 1770x1150x1150 | 1695x1075×938 | 250 | 500 | 2000 | 70 | 9feet |
| Other Height can be customized | |||||||
